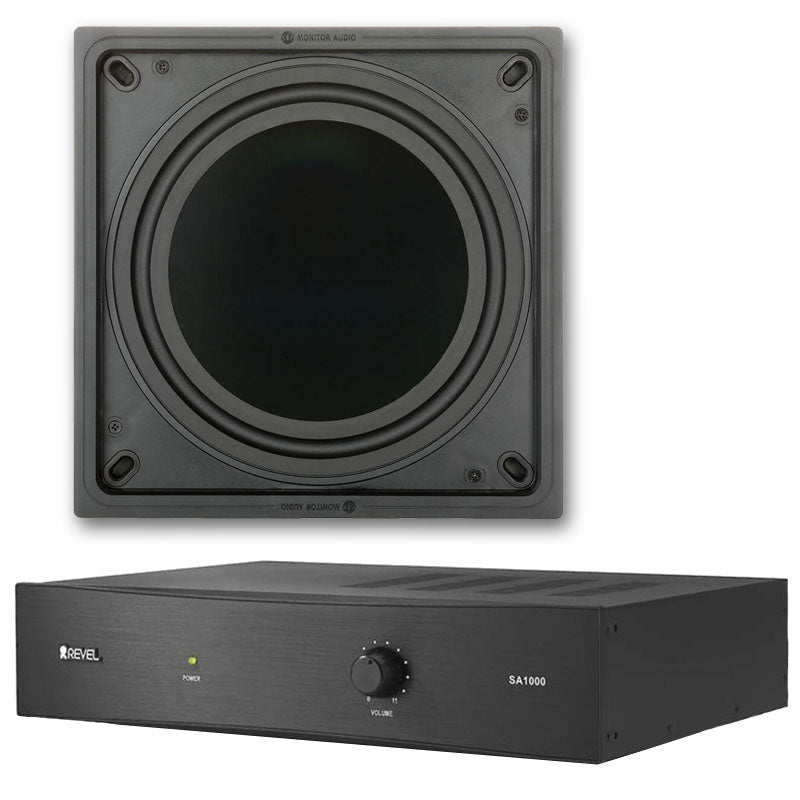

This package consists of a Revel (Harman/JBL) SA1000 subwoofer amplifier and 1 x Monitor Audio IWS-10 subwoofer driver.
Monitor Audio IWB-10 driver back box not included.

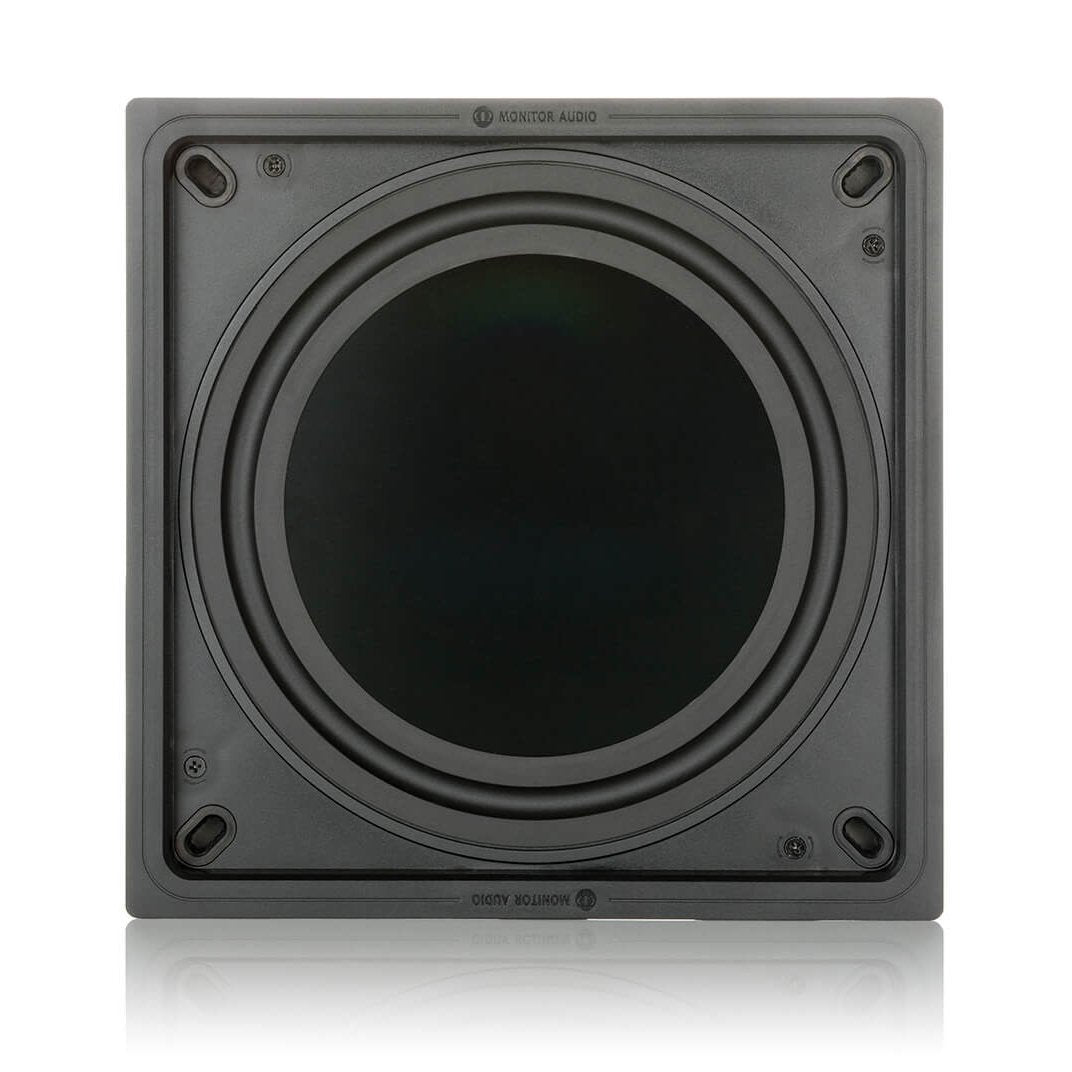

Monitor Audio IWS-10 Subwoofer Driver
The Monitor Audio IWS-10 In-Wall Subwoofer allows discreet placement of subwoofer for Home Cinema or Multi-Room installations. Providing excellent bass response the IWS-10 subwoofer driver utilises a super rigid flat 254mm driver manufactured from RDT material devised for Monitor Audio’s acclaimed ‘Platinum’ series of high-end speakers.
To provide excellent bass depth with maximum installation flexibility the IWS-10 subwoofer driver is a highly specialised design employing an extraordinarily rigid, flat 254mm surface of 10mm RDT material devised for Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. Rigid Diaphragm Technology is a sandwich of two layers of C-CAM alloy, bonded to a honeycomb Nomex core. The resulting properties of low mass and great strength give the driver the ability to behave as an extremely agile piston, resistant to bending, light enough to deliver an accurate bass response through large excursions, even within a shallow 81mm profile. A large vented pole helps to move air quickly, reducing power compression and heat dissipation.

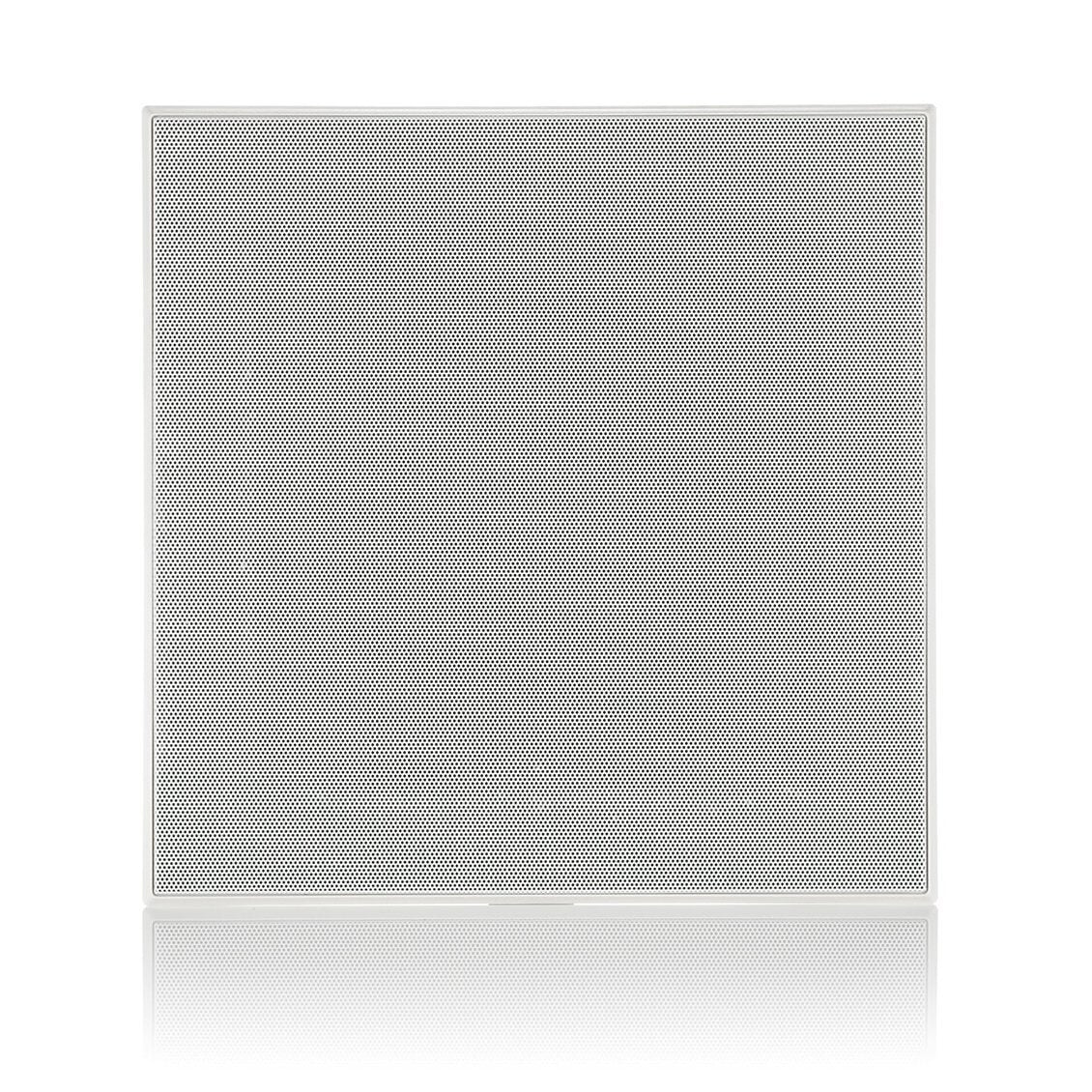

Consequently the IWS-10 is sufficiently well specified to generate excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box, providing wider retrofit possibilities. It features Monitor Audio’s patented Tri-grip clamping system which is easier to install and provides three times the surface area of a conventional dog-leg type clamp, offering better overall surface sealing. The IWS-10’s trim-less grille and frame edge are paintable to blend discreetly with décor.

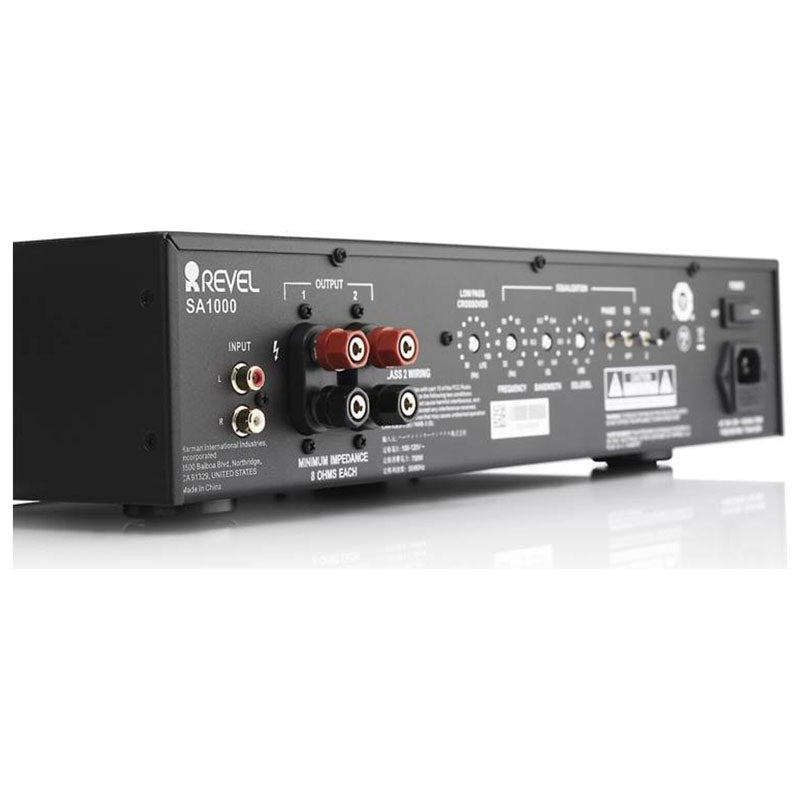

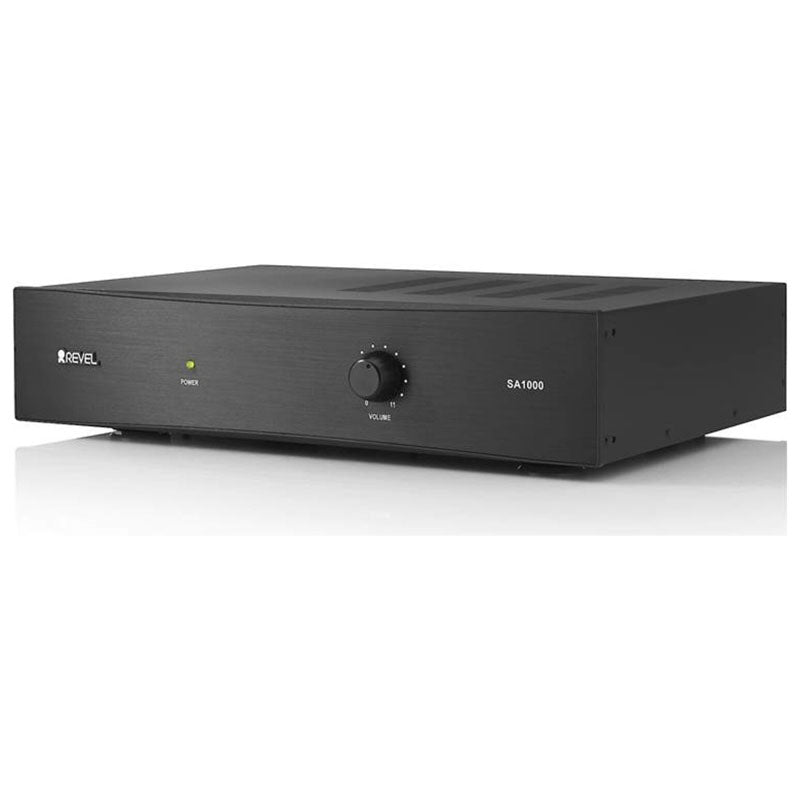

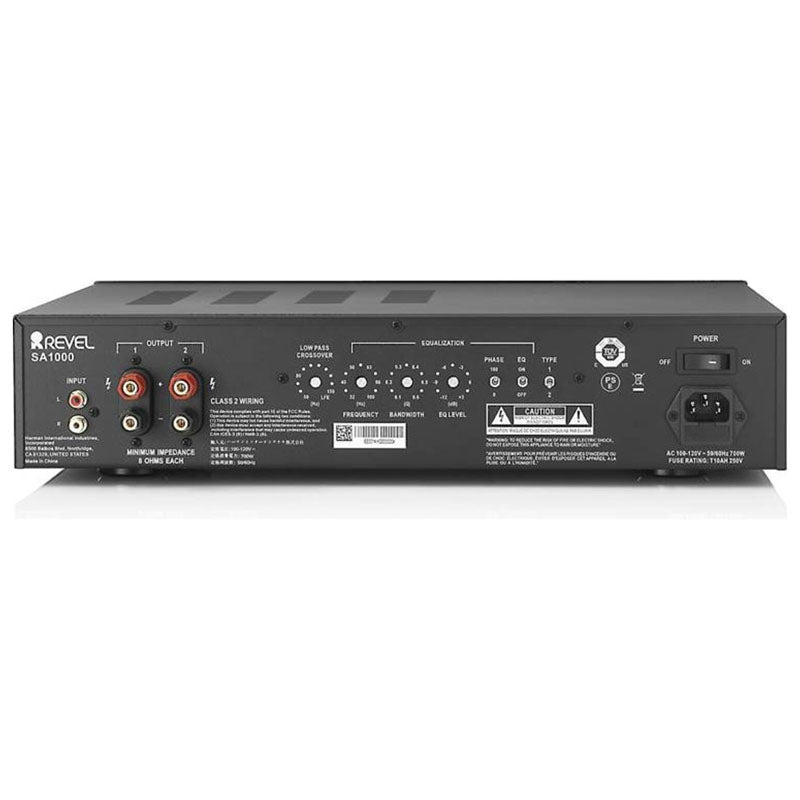

Revel (Harman/JBL) SA1000 Subwoofer Amplifier
The SA1000 is a custom amplifier solution, optimised for the highest level of performance and reliability. This rackmount amplifier includes user features on the front panel, and a custom installer focused feature set on the rear panel. This rack mountable Class D component is designed to power passive in-wall and in-ceiling subwoofer drivers.
The SA1000 single channel, rack mount amplifier has two outputs in parallel, so you can power one subwoofer driver with 350W RMS (750W Peak). When a second subwoofer driver is connected to the second output of the SA1000 amplifier, the total output power increases to 700W RMS (1500W Peak). It delivers dynamic bass and lifelike realism to concealed music and home cinema systems resulting from Revel’s advanced engineering prowess, and comprehensive subjective and objective measuring tests.
Features
- User-adjustable Single-band PEQ – Room Equalization
- Short-circuit and over-current protection
- Over-temperature compensation
- Two dual-banana output connectors for easy connection
- Connect up to two subwoofers with each SA1000 Amplifier
