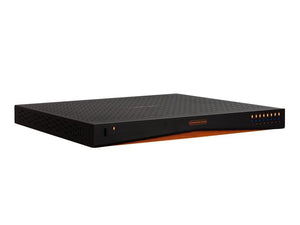

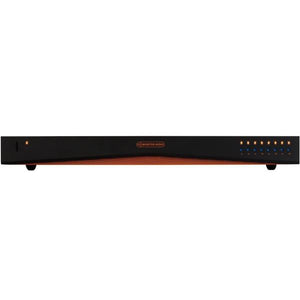

Monitor Audio IA150-8C 8-Channel Amplifier Black (Each)

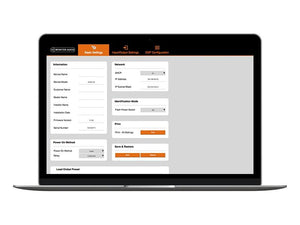

The IA150-8C enables up to eight (4 stereo pairs) channels of 150 watts of power at 4 ohms. It’ll fit 1U rack height and, it employs our Connect IP interface, a web application, which can be accessed by any device connected to the internet with a browser on the same network.
The Monitor Audio Installation Amplifiers are configurable to 1, 2, 3, 4, 5, 6, or 12 channels. The IA150-8C enables up to eight (four stereo pairs) channels of 150 watts of power at four ohms. It’ll fit 1U rack height and, as a member of the Monitor Audio ‘Connect’ division, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

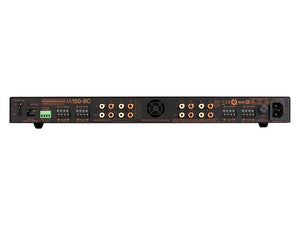

The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. Perfectly prepared for any project, the IA150-8C’s industry standard removable block connectors accept up to 12-gauge (3.5 mm2) cable. Together with the rest of the Installation Amplifier range, the IA150-8C provides the brain as well as the brawn for the mightiest of projects.
Important!
Click here to install the latest IA150-8C firmware. Please ensure the firmware is up to date before downloading IR Codes, IP Codes or the Crestron/Control4 drivers, which can be found in the Downloads area.
| FEATURES | |
| Connect IP Control: | Yes |
| Channel Number: | 8 (4 Stereo Pairs) |
| Power (W / Channel) 4 Ohms: | 150 W |
| Power (W / Channel) 8 Ohms: | 140 W |
| Power (W / Channel)Bridge (8 ohms): | 300 W (1CH) |
| Input Impedance: | 20 K ohms |
| Output Impedance (Loop RCA): | 600 ohms |
| Input Sensitivity: | 100 mV / 1 W, 1140 mV - Full power |
| Maximum Input Voltage: | 2.9 V |
| Signal to Noise (SN:R): | -100 dB (20 Hz - 20 kHz) |
| Frequency Response: | 5 Hz - 50 kHz |
| Total Harmonic Distortion THD + N@1 KHz: | 0.0003 |
| Mains Operating Voltage: | 100 - 120 V @ 60 Hz220 - 240 V @ 50 Hz |
| Fuse Rating: | 50 A (T10AL ~ 250VAC) |
| IP Communication: | TCP/IP (RJ-45 10/100 Base T) |
| Networked Standby Power Consumption: | <2 W |
| Standby Power Consumption: | <0.5 W (Green Mode) |
| DIMENSIONS | |
| Rack Height: | 1U |
| Dimensions (Without Feet) H x W x D: | 42.4 x 438 x 427 mm |
| Dimensions (With Feet)H x W x D: | 52.8 x 438 x 427 mm |
| Width (Including Rack Brackets): | 482 mm |
| Weight: | 7.45 kg (16 lb, 6 oz) |
Download the manual.
