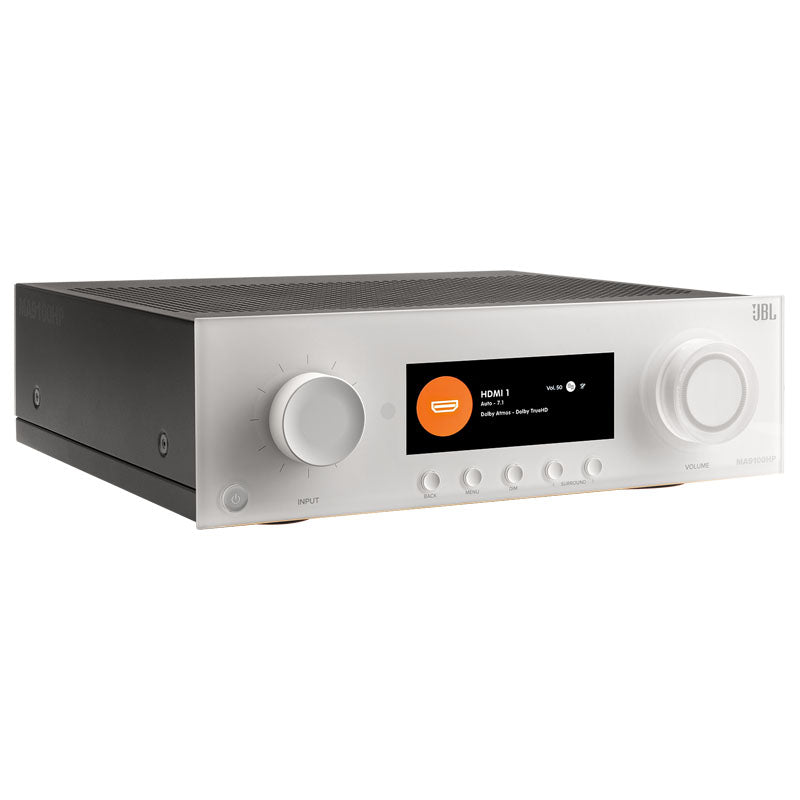

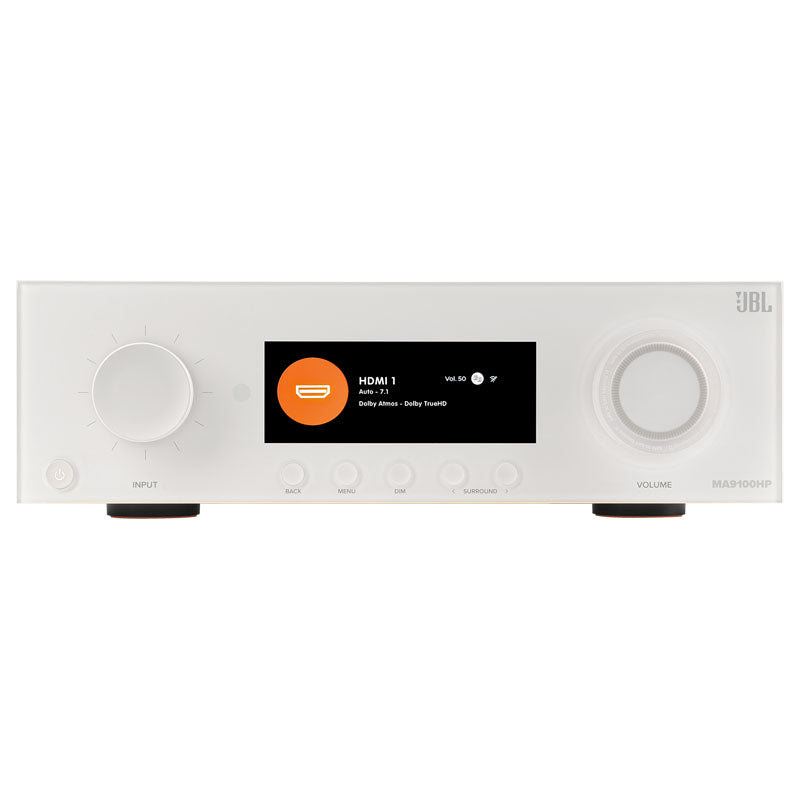

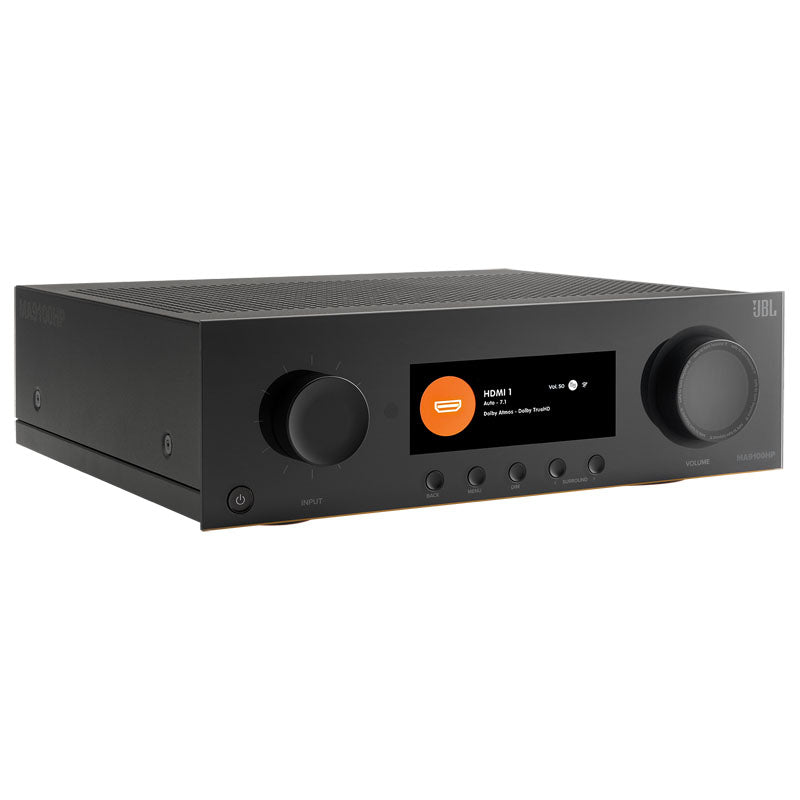

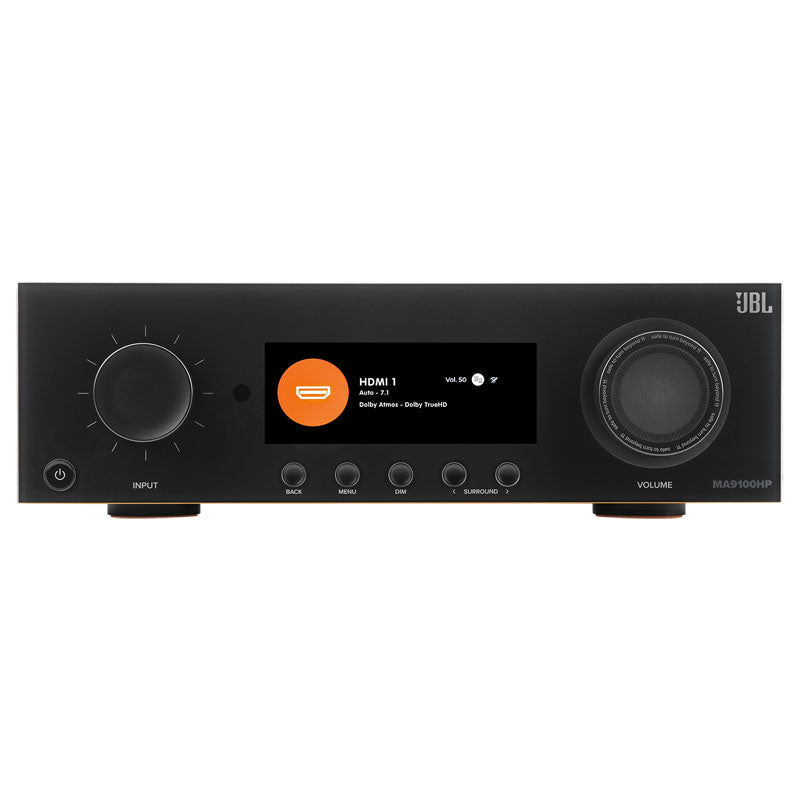

JBL MA9100HP 9.2 Channel 8K AV Receiver
Sound Advice, Recommended - "If JBL’s goal was to create a home cinema line-up that combined convenience with performance then mission accomplished. The MA9100HP actually looks like a product designed in the 21st century thanks to elegant styling, simplified connections and intuitive control. Set-up couldn’t be easier, and the wireless connectivity is comprehensive. Most importantly, it sounds fantastic - detailed and balanced two-channel delivery, along with powerful and precise Dolby Atmos and DTS:X spatial audio."
The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 9-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA9100HP features nine channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive.
Taking performance to the next level, the MA9100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allowing integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can be made available in a secondary location. In addition to physical controls, the MA9100HP allows for IP control for third party control system integration.
Highlights
- High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
- Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC
- Dolby Atmos and DTS:X decoding, supports up to 9.1 or 5.1.4 channel configurations
- Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
- Seven channels of powerful low noise Class D amplification for real world power to all channels
- EZ Set EQ provides easy-to-use room equalization for optimized sound quality
- Comes Dirac Live Ready, fully prepared to run Dirac Live – the worlds most advanced room correction software
| Amplifier Section | |
| Channels | 9.2 |
| Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 140 W RMS |
| Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 240 W RMS |
| Video Features | |
| HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes |
| 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 3 |
| HDMI 2.1 enhanced gaming features | Gaming-VRR, ALLM, QFT, HFR (4K@120Hz) |
| HDR 10+, Dolby Vision | Yes , Yes |
| Audio Features | |
| File format |
MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps |
| Pure Direct | Yes |
| EZ/Set EQ | Yes |
| Dirac Live Ready* | License purchased separately |
| Front channel bi-amp | Yes |
| DA converter | 192kHz/24-bit |

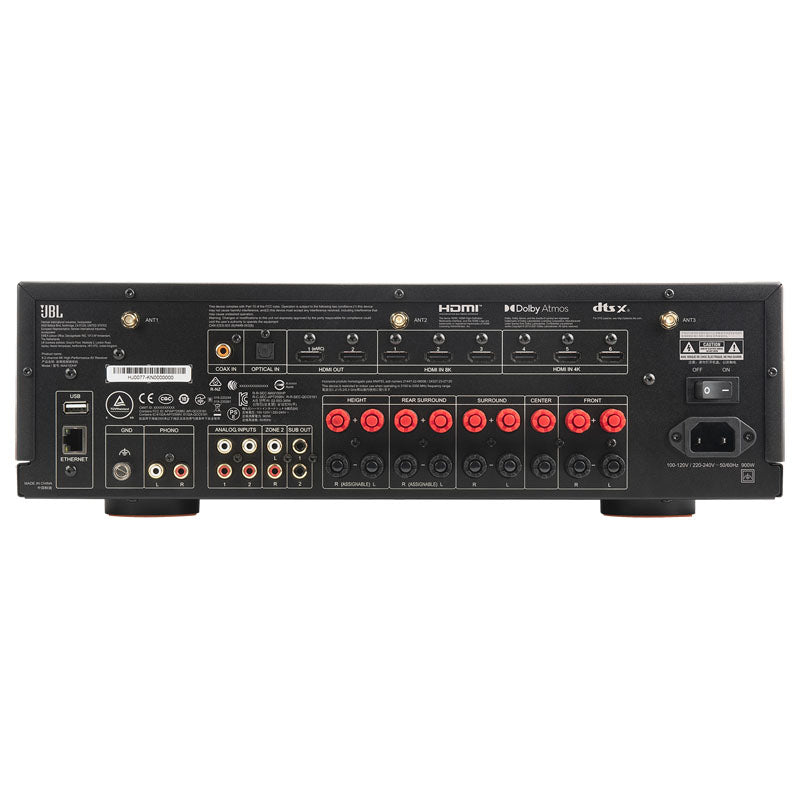

| Connectivity | |
| HDMI Input/Output | 6 / 2 |
| Wi-Fi | Yes (2.4 / 5GHz) |
| Bluetooth receive | Yes (v5.3, Low Energy, APTX HD, APTX Adaptive) |
| Bluetooth transmit | Yes |
| Digital Audio Input | 1 Coax, 1 Optical |
| Stereo analog input | 2 single-ended RCA |
| Pre-Out (single ended RCA) | Stereo Zone 2, Subwoofer 1, Subwoofer 2 |
| General | |
| Mains voltage | 110 – 240V, 50–60Hz |
| Max. power consumption | 900W |
| Standby power consumption | <0.5W |
| Dimensions incl. feet and speaker terminals (H x W x D) | 5.3” x 17.0” x 15.6” (135.0mm x 432.0mm x 396.4mm) |
| Weight | 16.8lb (7.6kg) |

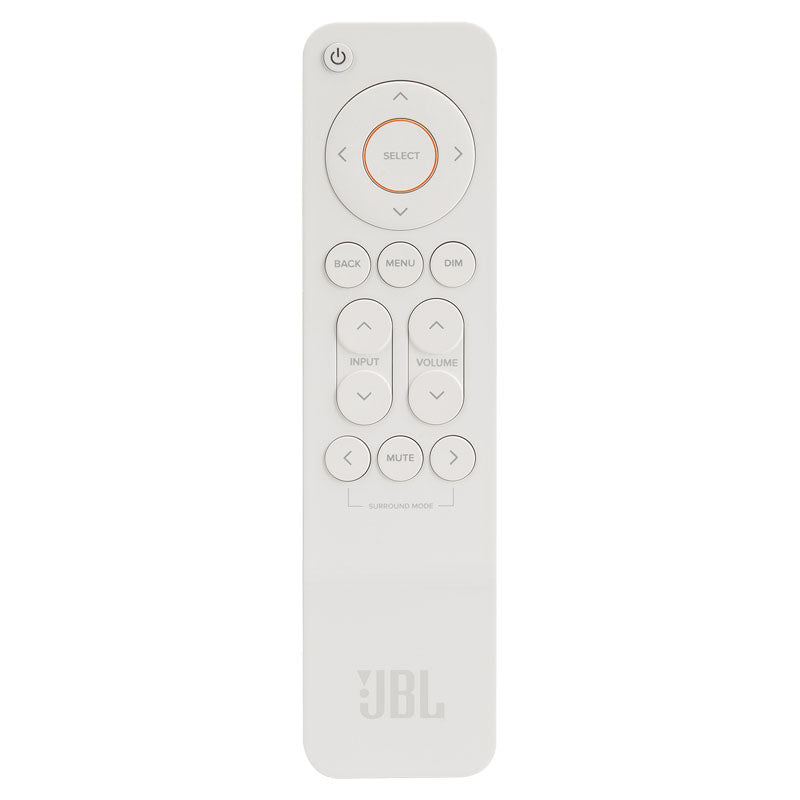

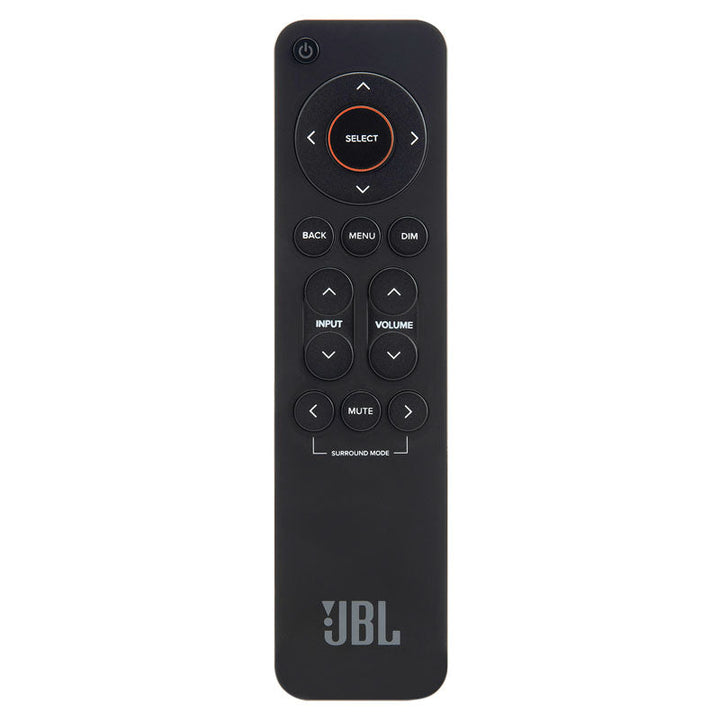

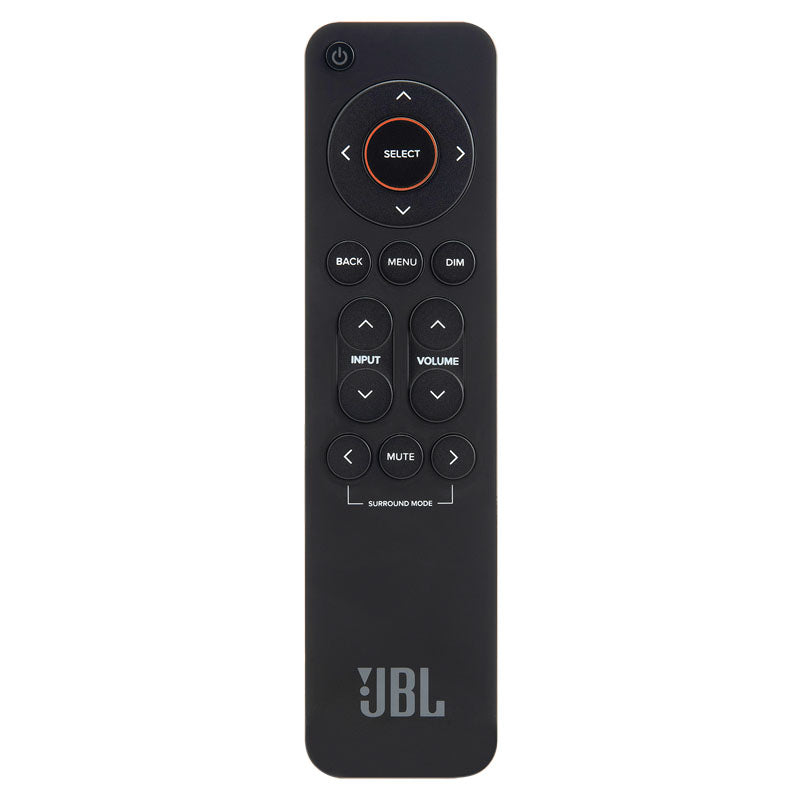

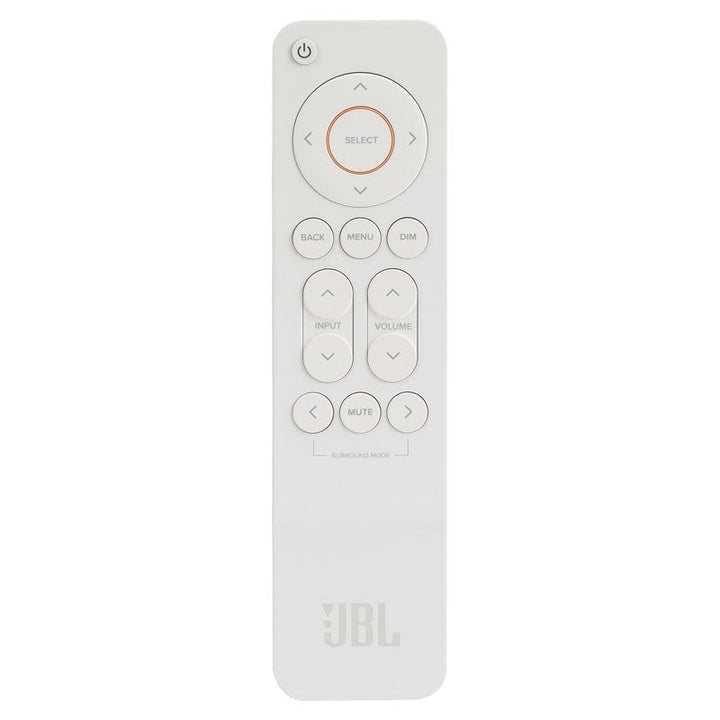

| Supplied accessories | IR remote, 2x AAA batteries, Bluetooth antenna, 2x Wi-Fi antenna, power cord |
