Discreet multi-room audio & home cinema
High quality discreet multi-room audio & home cinema
In-ceiling, in-wall, outdoor & more
Ceiling speakers, in-wall speakers, outdoor speakers & more
Sonos Authorised Platinum Dealer
Need more than 10? Contact us for availability.
Next working day delivery when ordered before 12pm
The Audioflow switch is carefully designed to be a convenient and safe way of switching between multiple speakers in a typical domestic multi-room audio system. It is perfect for connecting ceiling speakers, on-wall and in-wall speakers, bookshelf speakers and outdoor speakers to a single amplifier output.
You would be able to connect speakers in different areas. For example, a Bedroom / Dressing / En-suite, or an Open Plan Kitchen / Dining / Living Room / Garden without the expense of multiple amplifiers.

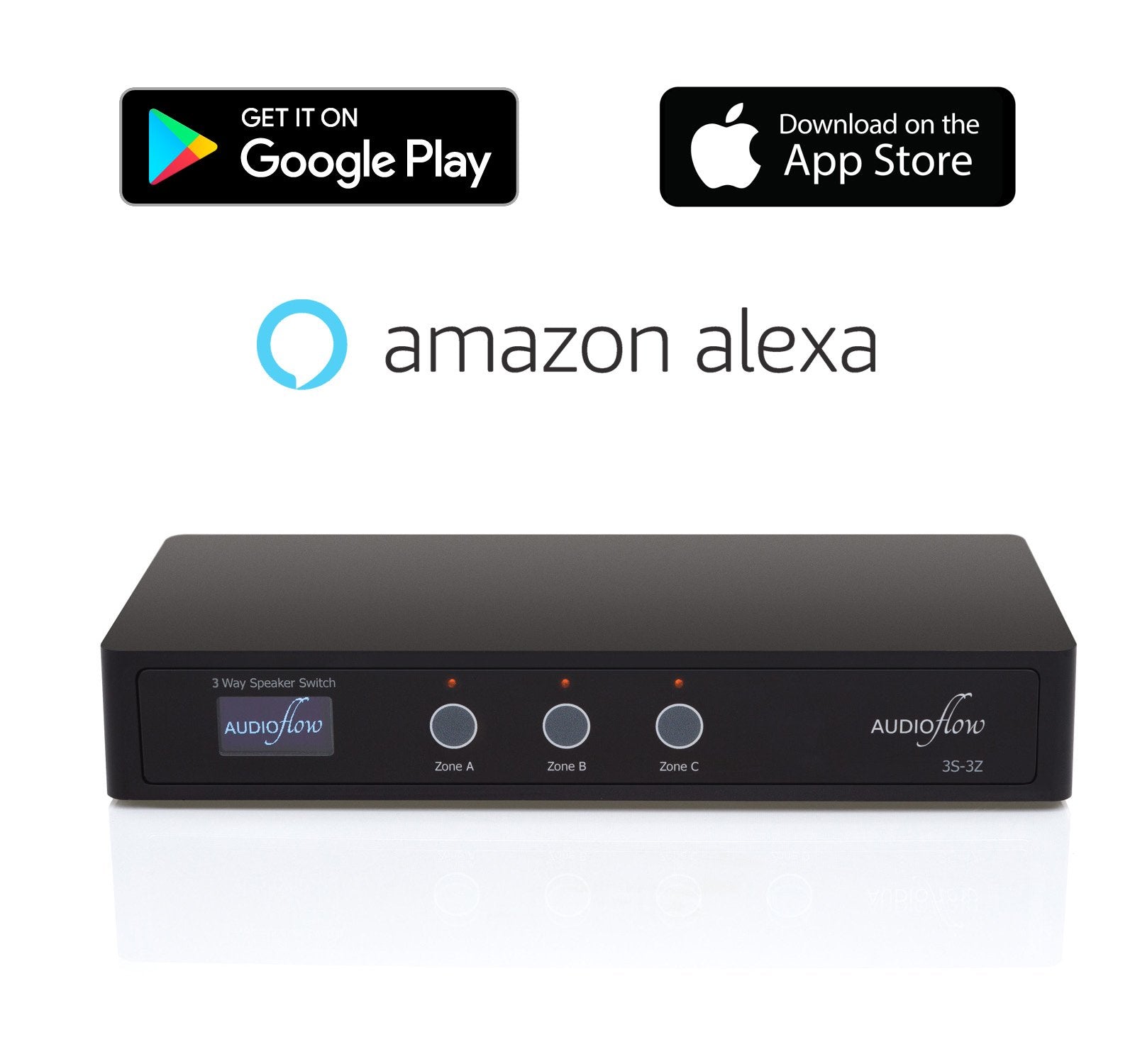

The speaker switch provides lots of flexibility by allowing you to enable and disable any combination of the speakers attached to it with the buttons on the front of the unit, over Wi-Fi with an app for iOS / Android, the Amazon Alexa Voice Assistant or Contact Closure connections.
Description: 3 Way Smart Speaker Switch
Model Number: 3S-3Z
Product Dimensions, Weight: H38 x W216 x D100 mm, 293g
Boxed Dimensions, Weight: H90 x W355 x D127 mm, 704g
Includes: Power Supply, Connection Plugs, Cable Ties, Quick Start Guide
Power Input: 5V DC 1A, 2.1 x 5.5mm Barrel Plug, Centre Positive
Power Supply: 100-240V 50/60Hz, 1.8m Lead, UK/EU/USA/AUS Plugs
Switching Relays: Max 8A @ 250V AC
Amplifier Power: Max 300W @ 8Ω
Cable Connection: Max 2.5mm2 or 14AWG

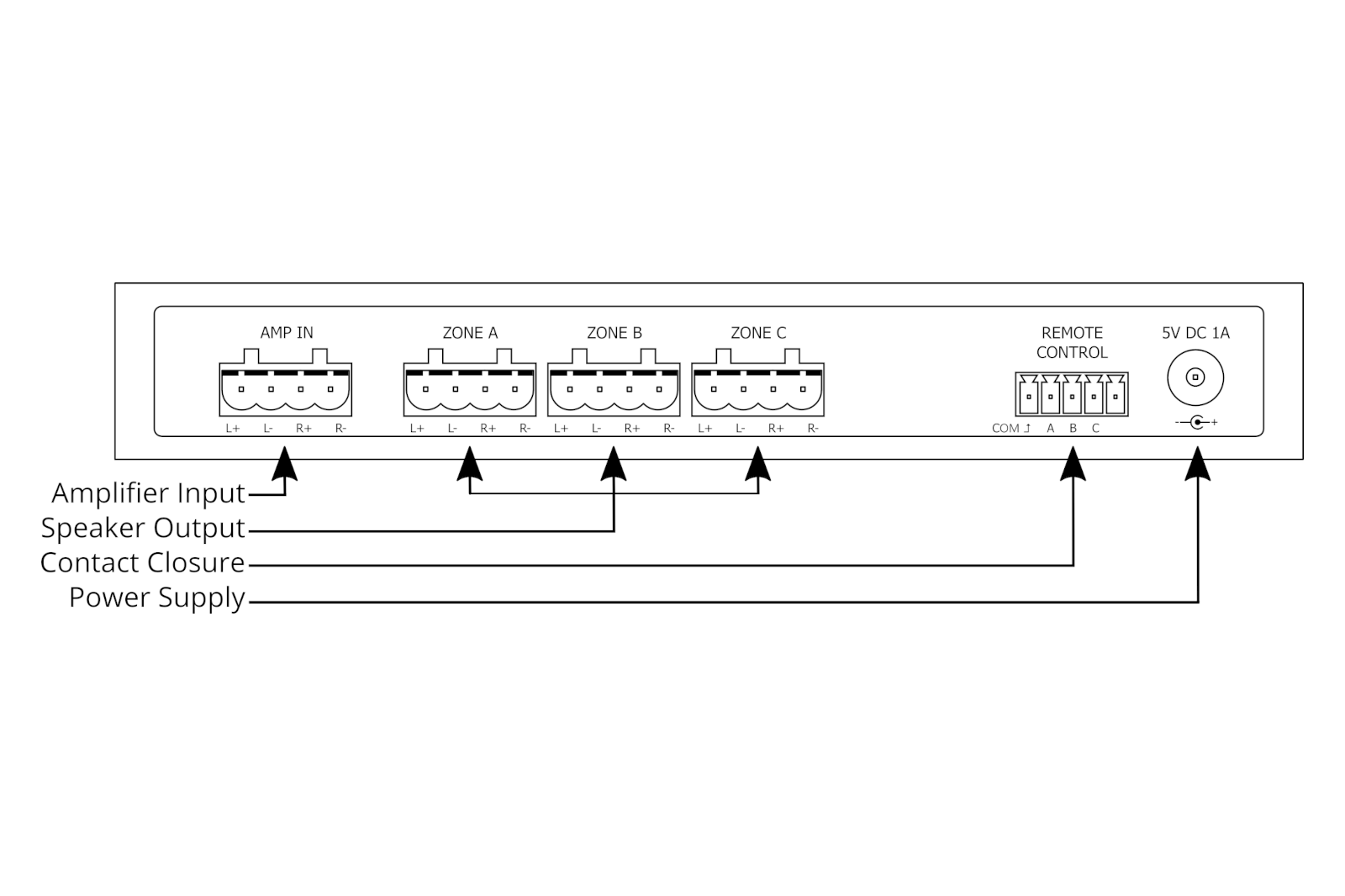

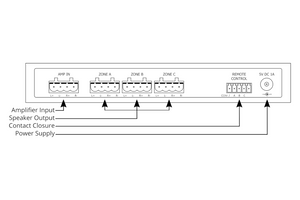

Speaker System Design: Impedance Matching, Zone A in Parallel with (Zone B+C Series)
All Zones Off: Amplifier Protection 200Ω Dummy Load
Wi-Fi Support: 2.4GHz 802.11b/g/n, WPA/WPA2 PSK
Supported OS (Provisioning): Android 6.0+ (Google Play Store) / Apple iOS 11.0+ (App Store)
Download the Audioflow 3S-3Z Brochure
Download the Audioflow 3S-3Z Manual
this seems a well overdue item for those wanting to have a app controlled HiFi switch, easy to use and install. I use mine with a Sonos amp, for room control without need to buy another amp a no brainer ..
